تفاصيل المنتج:
شروط الدفع والشحن:
|
| اسم المنتج: | شبكة سلك معدني موسعة | الكلمات الرئيسية: | توسيع الصفائح المعدنية |
|---|---|---|---|
| قطر الأسلاك: | 0.02-2 مم | طول ورقة: | 1500-2500mm |
| المعالجة السطحية: | المجلفن | شكل شبكة: | الماس |
| سمك الورقة: | 2.0-4.0mm | أنواع الألوان: | الشظية الحمراء وما إلى ذلك |
| ينهي: | بأكسيد ، PVC المغلفة أو PVDF المغلفة. | عملية: | القطع واللكم |
| إبراز: | expanded steel wire mesh sheet,hole shape expanded metal mesh,high quality expanded wire mesh,hole shape expanded metal mesh,high quality expanded wire mesh |
||

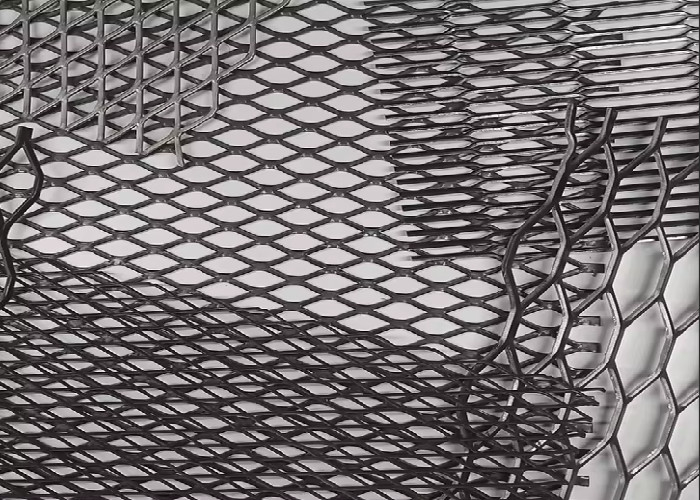

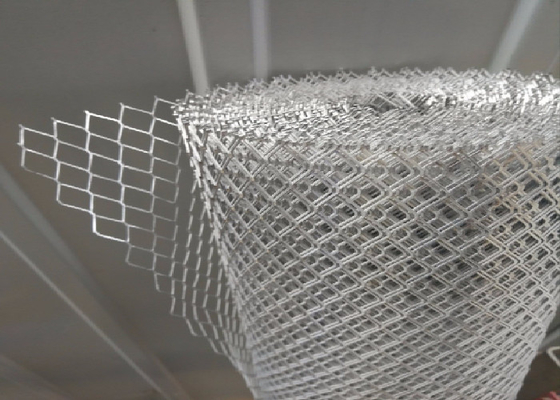

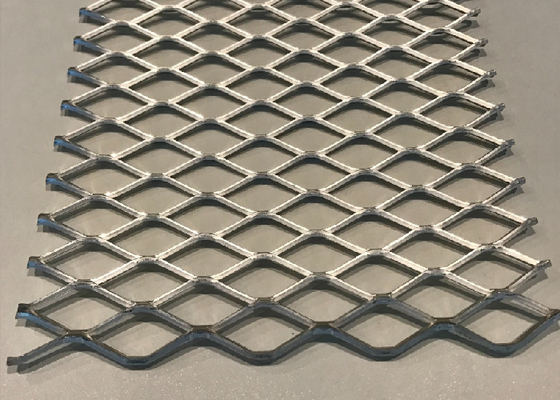

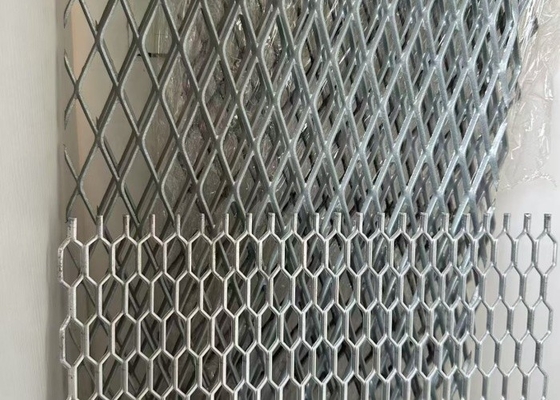

Expanded metal mesh is a durable material widely used in various applications including filter baskets, air filtration units, machine guards, animal cages, electrical equipment protection, safety doors & windows, room dividers, decorative ceilings, highway fences, and concrete reinforcement.
Available in stainless steel 304, galvanized steel, steel, aluminum and other materials. Hole sizes range from 0.5mm to 20mm, with custom sheet dimensions available upon request.
Standard sheet sizes include 1000×1000 mm, 1000×2000 mm, and 1220×2440 mm.
| Thickness (mm) | SWD (mm) | LWD (mm) | Wire stems width (mm) | Width & Length |
|---|---|---|---|---|
| 0.5 | 2.5 | 4.5 | 0.5 | Width: 0.5m-2.0m Length: 30m, 50m Other sizes available upon request |
| 0.5 | 10 | 25 | 0.5 | |
| 0.6 | 10 | 25 | 1 | |
| 0.8 | 10 | 25 | 1 | |
| 1 | 10 | 25 | 1.1 | |
| 1 | 15 | 40 | 1.5 | |
| 1.2 | 10 | 25 | 1.1 | |
| 1.2 | 15 | 40 | 1.5 | |
| 1.5 | 15 | 40 | 1.5 | |
| 1.5 | 23 | 60 | 2.6 | |
| 2 | 18 | 50 | 2.1 | |
| 2 | 22 | 60 | 2.6 | |
| 3 | 40 | 80 | 3.8 | |
| 4 | 50 | 100 | 4 | |
| 4 | 60 | 120 | 4 | |
| 4 | 80 | 180 | 4 | |
| 4 | 100 | 200 | 4 |
1. Custom packaging available upon request
2. Standard packaging options:
