تفاصيل المنتج:
شروط الدفع والشحن:
|
| اسم المنتج: | سياج سلكي بحلقة مزدوجة/سياج بحلقة مزدوجة مضاد للتسلق | الكلمات الرئيسية: | سياج سلكي مزدوج الحلقة، سياج مضاد للتسلق، سياج مجلفن بالغمس الساخن، سياج سلكي مغلف بـ PVC، سياج محيط |
|---|---|---|---|
| مادة: | فولاذ منخفض الكربون مع جلفنة بالغمس الساخن / طلاء PVC | قطر السلك: | 2.5 مم - 4.0 مم (السلك الأفقي: 3.0 مم - 4.0 مم، السلك الرأسي: 2.5 مم - 3.5 مم) |
| حجم الشبكة: | 50 × 50 مم، 50 × 100 مم، 100 × 100 مم (قابل للتخصيص) | ارتفاع السياج: | 1.2 م - 3.0 م (قابل للتخصيص، مشترك: 1.8 م للسكن، 2.5 م للمطار) |
| المعالجة السطحية: | الجلفنة بالغمس الساخن (طلاء الزنك: 600-800 جم/㎡) / طلاء PVC (السمك: 0.8 مم - 1.2 مم) | تطبيق: | المزرعة، المطار، المجتمع السكني، حديقة الحيوانات، المنطقة الصناعية |
| إبراز: | PVC-coated double loop wire fencing,high-security airport perimeter fencing,double loop wire fence with warranty,high-security airport perimeter fencing,double loop wire fence with warranty |
||

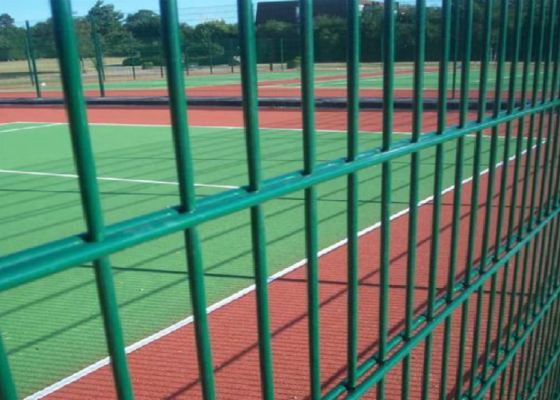

High-Security Double Loop Wire Fencing PVC-Coated for Airport Perimeter Protection
Product Description-Double Loop Wire Fencing:
The Reliable Perimeter Protection for Multi-Scene Security
Double loop wire fencing, characterized by its unique "double-loop interlocking structure", integrates anti-climb performance, corrosion resistance, and durability. Made of high-quality Q235 low-carbon steel, it undergoes hot-dip galvanizing (zinc coating 600-800g/㎡) or PVC coating (0.8-1.2mm thickness) to resist harsh environments like farm humidity, airport outdoor exposure, and zoo animal scratches. With a Class B anti-climb grade (per EN 1522-5), it effectively prevents intruders from climbing even with tools, while the flexible mesh design absorbs impact—ideal for containing large animals in zoos or preventing livestock escape on farms.
| Item | Parameter |
|---|---|
| Material | Q235 Low-Carbon Steel |
| Wire Diameter | Horizontal: 3.0-4.0mm, Vertical: 2.5-3.5mm |
| Mesh Size | 50×50/50×100/100×100mm (Customizable) |
| Fence Height | 1.2-3.0m (Customizable) |
| Surface Treatment | Hot-Dip Galvanizing (600-800g/㎡) / PVC Coating (0.8-1.2mm) |
| Anti-Climb Grade | Class B (EN 1522-5) |
| Service Life | 15-20 Years (Galvanized), 10-15 Years (PVC-Coated) |
| Warranty | 5 Years |
Super Anti-Climb Performance:The double-loop interlocking structure has no obvious footholds, and Class B anti-climb grade (per EN 1522-5) prevents climbing with ladders or hooks.
Strong Corrosion Resistance:Hot-dip galvanized models have a zinc coating of 600-800g/㎡—SGS salt spray tests show no red rust after 1000 hours (equivalent to 15 years of outdoor use). PVC-coated models (0.8-1.2mm thickness) resist acid and alkali, suitable for humid farms in Southeast Asia.

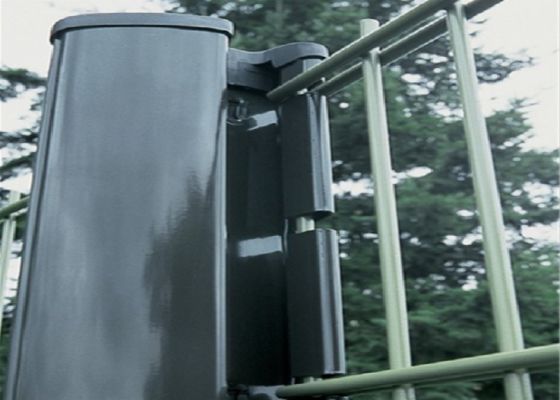

Quick Installation:Pre-assembled panels (standard 2.5m/3m length) and matching accessories (posts, clamps) reduce on-site work.
Impact Resistance:The flexible double-loop structure absorbs impact force—tests show it can withstand 500N impact (equivalent to a 100kg animal collision) without deformation.
Production Process:
Raw Material Processing:Q235 low-carbon steel wires are drawn to specified diameters (2.5-4.0mm) and annealed to improve ductility, ensuring no breakage during bending.
Double-Loop Forming:Horizontal and vertical wires are woven into double-loop interlocking mesh by automatic looms, with mesh size precision controlled within ±1mm.
Surface Treatment:- Hot-dip galvanizing: Mesh is immersed in 450℃ molten zinc for 3-5 minutes, forming a 600-800g/㎡ zinc layer. - PVC coating: Galvanized mesh is electrostatically sprayed with PVC powder, then cured at 200℃ for 15 minutes to form a 0.8-1.2mm coating.
Panel Cutting & Assembly:Mesh is cut into standard panels (2.5m/3m length) and reinforced with edge wires; matching posts (galvanized/PVC-coated) and clamps are produced simultaneously.
Quality Inspection:Each batch undergoes wire diameter measurement, zinc coating thickness test (using a coating thickness gauge), and anti-climb performance simulation—only qualified products are packaged.
