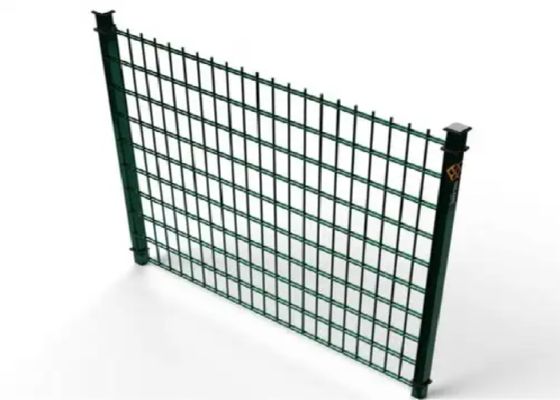

Robust Double Loop Wire Fencing Panels Easy Install Long Service Life

Robust Double Loop Wire Fencing Panels Easy Install Long Service Life

Double Loop Wire Fencing — Product Overview:

Double Loop Wire Fencing uses two continuous horizontal reinforcements welded across vertical wires to create a fence panel with improved stiffness and resistance to deformation. The double horizontal wires reduce deflection under load and support heavier posts and attachments (gates, anti-climb toppers). Panels maintain sightlines while delivering a firm barrier that is visually unobtrusive yet robust for long-term perimeter control.

Double Loop Wire Fencing — Materials & Performance:

Panels are manufactured from high-tensile steel wire, formed and welded to tight tolerances. Choose hot-dip galvanizing for general outdoor exposure or PVC coating for coastal/chemical environments where extra corrosion protection is needed. Typical wire diameters from 3.0–5.0 mm balance impact resistance with ease of handling. The welded intersections and dual horizontals ensure long fatigue life under repeated loads (wind, contact). Available finishes and gauges are selected to meet expected service life and maintenance budgets.

Double Loop Wire Fencing — Installation Steps (Detailed)

Layout & Marking: Mark post positions at 2–3 m centers; verify alignment and level.

Foundation & Posts: Excavate holes (typical 400–600 mm depth), set posts in concrete, maintain verticality; cure concrete 24–48 hours.

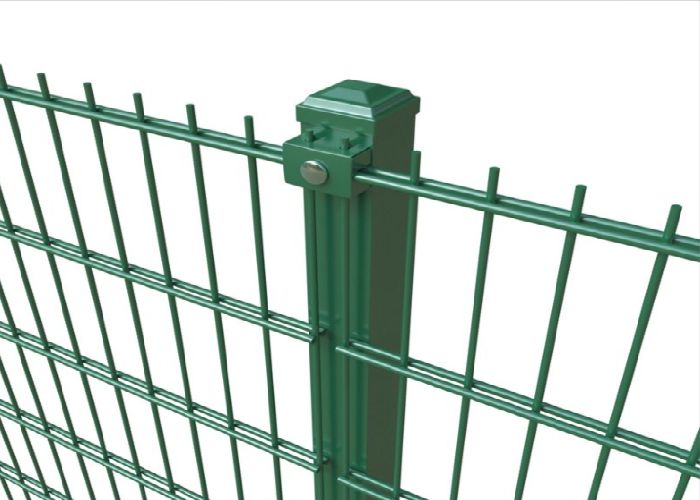

Panel Fixing: Fit pre-assembled panels onto posts using quick-mount clamps or brackets; begin at a corner or gate post and work sequentially.

Tension & Fastening: Ensure panels are plumb; tighten all bolts and fasteners to specified torque. Fit top rails, end caps, and any anti-climb or barbed accessories.

Inspection: Walk the perimeter, inspect fastenings and coatings, touch up any damage with zinc or polymer repair paint.

Double Loop Wire Fencing — Application Case Template

Project: Logistics Park Perimeter — 1.2 km
Specification: PVC Coated, 3.5 mm wire, 2.5×2.0 m panels, post spacing 2.5 m
Installation Duration: 10 days (10 installers)
Outcome: Rapid installation using pre-assembled panels; reduced excavation time; client reported simplified security operations and minimal maintenance after 18 months.

Packaging & Delivery
Panels stacked and wrapped with protective film, bundled on wooden pallets; posts boxed separately. Export crates available for larger orders.
