تفاصيل المنتج:
شروط الدفع والشحن:
|
| اسم المنتج: | خاتم بالات المعادن / التعبئة العشوائية | الكلمة الرئيسية: | التعبئة العشوائية |
|---|---|---|---|
| مادة: | الفولاذ المقاوم للصدأ 304/316 | مقاس: | 16،25،38،50،76 مم أو مخصصة |
| جزء فارغ: | عالي | OEM: | نعم |
| أداء: | مقاوم للحرارة | انخفاض الضغط: | قليل |
| ميزة: | انخفاض الضغط المنخفض والكفاءة العالية | ميناء التحميل: | ميناء Xingang |
| إبراز: | Stainless Steel 316 Pall Rings,Metal random packing for gas scrubbing,316 stainless steel Pall Ring packing,Metal random packing for gas scrubbing,316 stainless steel Pall Ring packing |
||
| Attribute | Value |
|---|---|

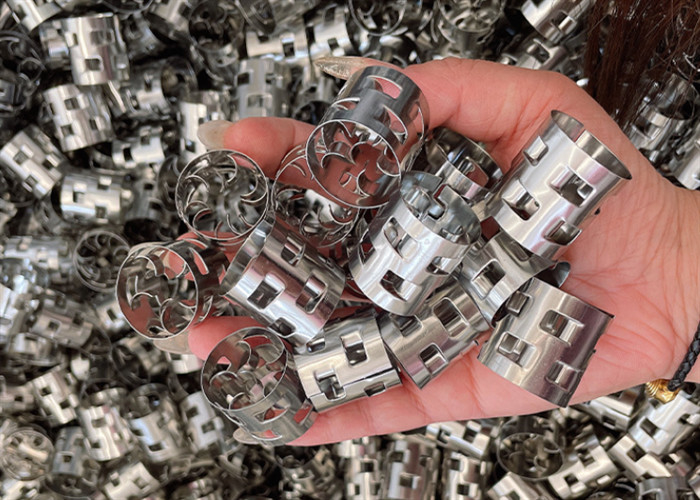

| Product Name | Metal Pall Ring / Random Packing |
| Material | Stainless Steel 304 / 316 |

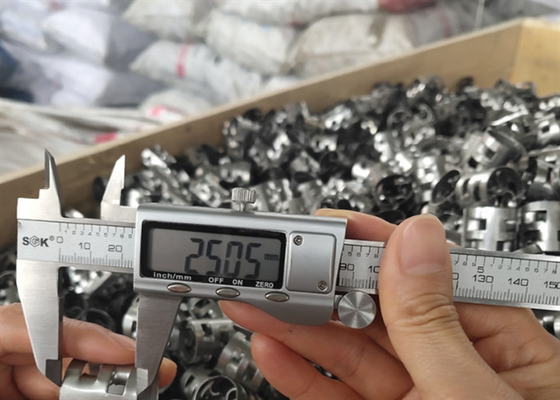

| Size | 16,25,38,50,76mm or Customized |
| Void Fraction | High |
| Performance | Heat-resistant |
| Pressure Drop | Low |
| Feature | Low Pressure Drop, High Efficiency |
| Port Of Loading | Xingang Port |
The Metal Pall Ring is a highly efficient packing material designed for vacuum distillation processes, offering optimal surface area and void space for superior heat transfer. This versatile packing solution is also ideal for various industrial applications including gas absorption, cooling systems, and air purification.
| Size (inch/mm) | Bulk Density (SS304 kg/m3) | Number (per m3) | Surface Area (m2/m3) | Free Volume (%) | Dry packing factor m-1 |
|---|---|---|---|---|---|
| 1" (25×25×0.4) | 288 | 53500 | 212 | 96.2 | 229.8 |
| 1" (25×25×0.5) | 367 | 53500 | 216 | 95 | 237.2 |
| 1" (25×25×0.6) | 439 | 53500 | 219 | 94.2 | 244.1 |
| 1.5" (38×38×0.4) | 193 | 15180 | 143 | 97.2 | 148.4 |
| 1.5" (38×38×0.5) | 246 | 15180 | 145 | 96.7 | 151.7 |
| 1.5" (38×38×0.6) | 328 | 15000 | 146 | 95.9 | 154.6 |
| 2" (50×50×0.5) | 185 | 6500 | 106 | 97.5 | 128.5 |
| 2" (50×50×0.7) | 315 | 6500 | 108 | 96.4 | 130.5 |
| 2" (50×50×0.9) | 380 | 6500 | 132.5 | 95.4 | 134.0 |
| 3" (76×76×0.8) | 265 | 1920 | 69 | 97.4 | 79.6 |
